Repairing Our Wild Ozark Spring Water Line

Today I repaired our Wild Ozark spring water line

Since I’ve learned how to do this myself, I figured I’d do it while Mr. Wild Ozark was at work. Later this summer we have plans to change out the entire spring water line and bury them, but this smaller repair needed to be done sooner rather than later.

The other day I posted about finding the leak. In that post I explained how our water is from a spring and is gravity fed to the house a few hundred feet below the source.

The hike to get up there is a rough one to me, although when I was younger it wasn’t as hard as it seems to be now. I think I’ll make this hike more often than once a year in the future. Perhaps if I do it more often it won’t be such the task when it’s a necessary hike.

Weather kept me from getting to it sooner. It’s been cold and very windy. Not my favorite kind of weather for doing anything outside. But this weekend there is icy rain in the forecast and I wanted to make sure it was done before that arrived. Today there was still ice on the ground around the leak.

If you want to enlarge these photos, just click on them and it should take you to a full sized image.
Ice all around the leak on the Wild Ozark spring water line.
Ice on the ground all around the leak.
The leak had grown a little larger since the other day, but still not too bad.
The leak had grown a little larger since the other day, but still not too bad.

I kept hiking higher to the water tank so I could shut off the valve. I also needed to cut the overflow line because it had been mangled by critters trying to get water out of it instead of drinking from the other spring a few hundred feet away.

Our 1500 gallon water collection tank.
Our 1500 gallon water collection tank.

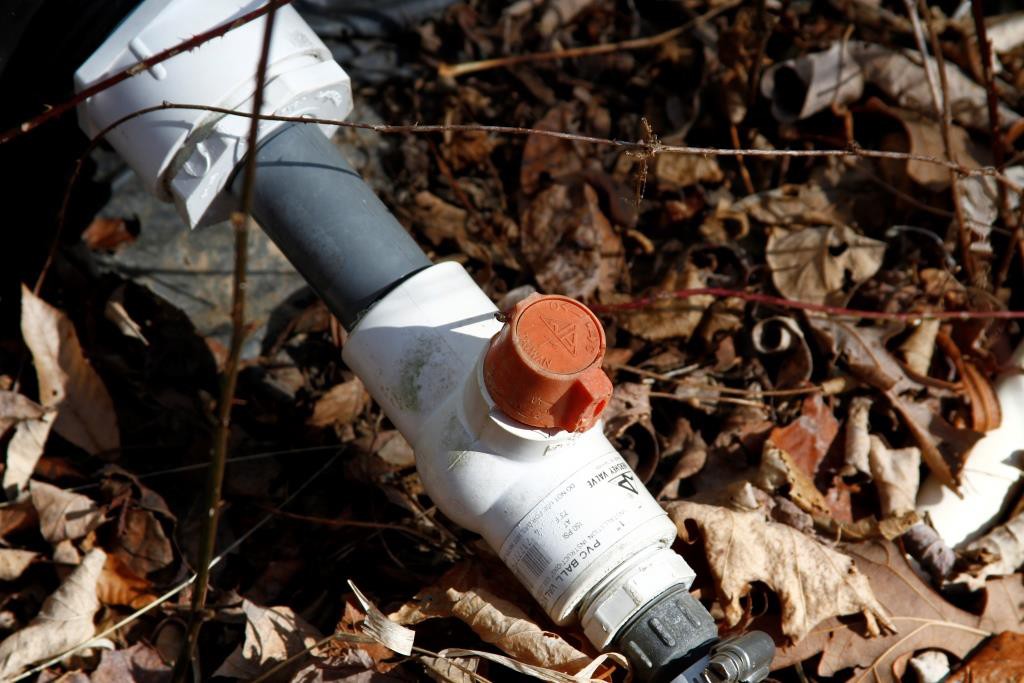

The valve is old and brittle and hard to turn.
The valve is old and brittle and hard to turn. We’ll need to replace it soon, but I surely didn’t want that day to be today.

Now, I have figured out how to do things, but that doesn’t mean I know how to do them properly. I just know that this method works for me. Working on the spring water line is something I’ve had to do over the years fairly regularly, and most of the time it’s been during winter.

I also don’t always know the proper names for parts and tools. Ha. So you might notice that in some of my not-so-scientific terms for things, like the handy dandy little pipe saw in the picture below. Who cares what it’s really named? It works wonders. I wanted to make a cut on the part of the line I was changing out so the water would drain faster. I’d left a faucet running in the house before I went uphill, but that was taking too long to do the job.

Handy dandy pipe cutting saw.
Handy dandy little pipe cutting saw.
More cuts to drain more water more quickly.
More cuts to drain more water more quickly.

Once the spray slowed to a trickle, I used the same little saw to cut the line in half, leaving enough room to add a coupler to the end leading underground.

7. sawed end

Before putting the coupler on, though, I need to use the other cutter to make a cleaner edge on the pipe so it seals properly.

The other pipe cutter.
The other pipe cutter.
A smoother end.
A smoother end.

There’s the new line still coiled up. There are only a few places now to buy the parts we need for servicing our spring water line. Hardware stores like Lowe’s or Home Depot carry ordinary water line supplies, and they probably have the brass couplers, but not the kind of lines we use here to bring it down the mountain. The house itself has the PEX with crimp bands, but this is a thicker walled plastic that I haven’t been able to find anywhere besides our little local store.

25' of new line I bought on Monday.
25′ of new line I bought on Monday.

I’ll unroll it and hope it’s warm enough to straighten it out a little easier. When it’s cold it doesn’t want to bend too much and likes to stay coiled.

Here’s all the parts I’ll be using for this part of the project.

11. assembly of parts

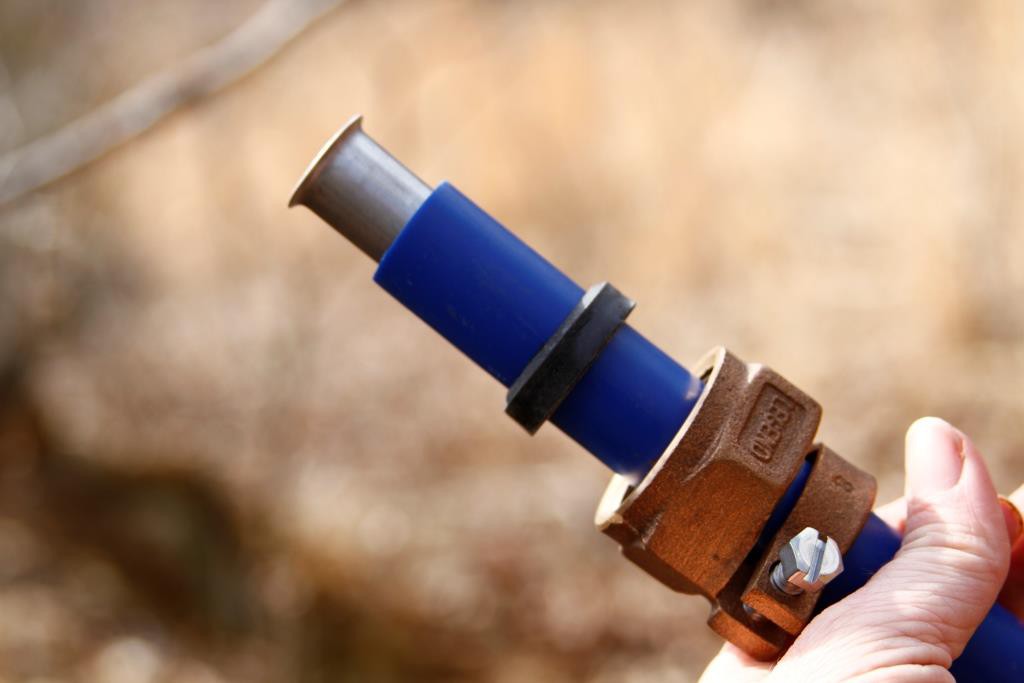

13. assembly on pipe
I had to use the handle of the screwdriver like a hammer, since I forgot to bring one with me, to drive the insert down all the way. This part keeps the fitting snug and keeps it from leaking.

Then I’ll do the same thing to the new end that is getting connected to the old end.

And finally I’ll do the same thing to the other end. And then it’s done.

A finished joint between the old line and the new.
A finished joint between the old line and the new.

Ideally, the line should be buried so it doesn’t freeze and so that sunlight doesn’t weaken the plastic. But that’s something that’ll have to wait for my husband’s help. In the meantime I’ll lay it on the ground and weight it with rocks to keep it from trying to coil up again and make a loop in the air. Any part of it up in the air would be exposed to the cold more than it would be if it’s on the ground. When it snows or ices, then that snow and ice at least stays at 32*F and insulates the line from temperatures colder than that. In the zero and minus zero temps we can get sometimes, it is much harder to keep water moving. Even if I leave a faucet running with a fairly good stream in the house.

So this little project is done and I’ve gotten all the exercise I can stand for one day. I hope you enjoyed this little vicarious plumbing of the Wild Ozark spring water line 🙂
